Some of the concrete walls have been poured. The structure in the left foreground is an air intake.
Preparing to pour footings. The concrete is delivered from the concrete truck via a chute to wheelbarrows and then manually placed. The grid between the form boards is iron rebar that are tied together with steel wires. This serves to reinforce the concrete.
Lower level has been backfilled with “CA-7",” which is a graded crushed stone. That is, the stone are of relatively uniform size. What looks like Kraft paper laid over stone, is actually a product called Cetco Ultraseal. This is a multilayered waterproofing material that combines natural sodium bentonite and a chemically resistant hydrophilic polymer to form a bentonite-polymer alloy (BPA). The is material has swelling properties that seal small concrete cracks. The “paper” is simply overlapped.
Electricians installing conduits under L-107.
Cioni Excavating crane rest atop a massive pile of earth at the southeast corner of the site.
2nd floor: Note copper heating and cooling piping along the brick wall in the background. Metal studs, that define the walls, in the foreground.
Architect Dan Weese photographs wood windows on the east side of the 2nd floor.

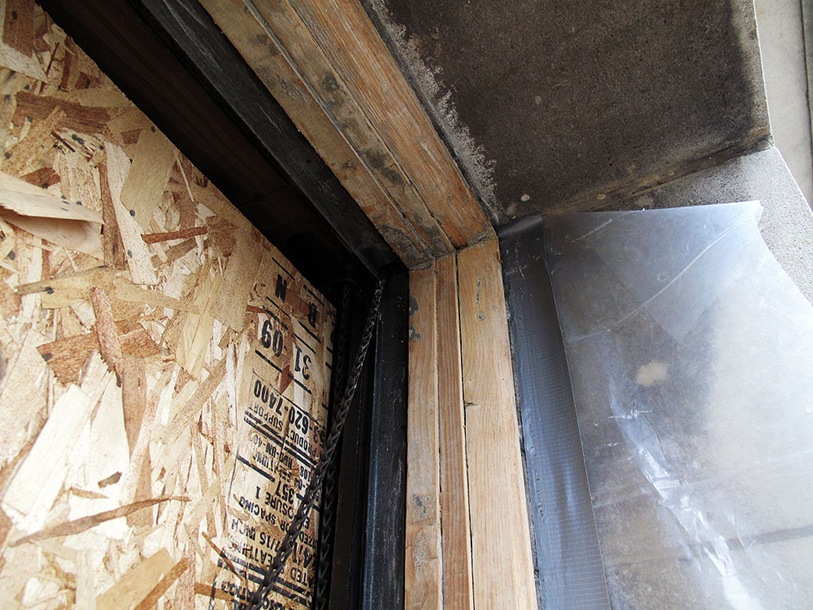

The 95 year old window frames are being carefully stripped of layers of paint.
After all the paint has been stripped, the wood will be treat with a special epoxy product that will fill any gaps, sanded smooth and repainted.
